4.4.6 Example: Sod shock tube with Roe solver, vanLeer slope

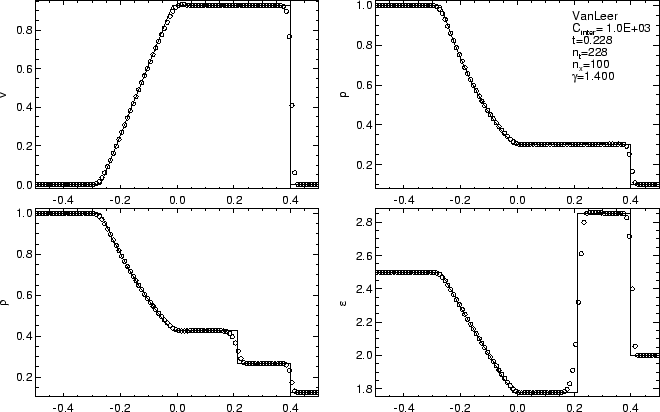

Figure 35: Sod shock tube: vanLeer slope-limiter.
$\textstyle \parbox{1.0cm}{\makebox[1.0cm]{}}$\includegraphics[width=12.0cm]{images/sod_vanleer.ps} $\textstyle \parbox{1.0cm}{\makebox[1.0cm]{}}$
Figure 35: numerical solution of the Sod shock tube problem with PL reconstruction and vanLeer slope-limiter.
