CCD type: Sony ICX249AL EXview CCD with ultra low dark current and vertical anti-blooming
Array: 752 x 580 pixels
Pixel size: 8.6 x 8.3 microns
CCD size: 6.47 mm (horizontal) x 4.83 mm (vertical)
Pixel scale: 0.39" in Nasmyth 1 f/5 focus, 0.19" in Nasmyth 2 f/10.5 focus
FOV: 4.9'x3.6' in Nasmyth 1 f/5 focus, 2.3'x1.7' in Nasmyth 2 f/10.5 focus

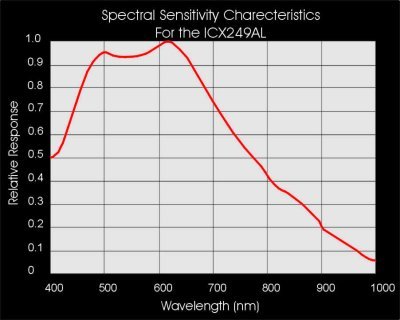

QE: 65% at 590 nm, 20% at 400 nm and 45% at 670 nm
Readout noise: <12 electrons RMS
Full-well capacity: >70,000 e-
Anti-blooming: Overload margin >800x
Dark current: Dark frame saturation time >100 hours, <0.1 e-/sec at +10 C ambient
Data format: 16 bits
Cooling system: Regulated constant-current cooling supply built-in. Single-stage thermoelectric cooler to give a CCD temperature of approximately -30 C below ambient.
