2.6.4 PLM scheme with Minmod slope-limiter

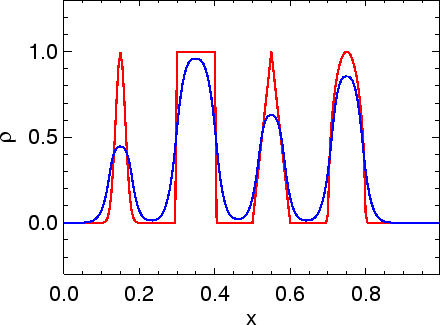

Figure 18: Stencil and example for PLM scheme with Minmod slope-limiter.
\includegraphics[width=8.0cm]{images/pde1d_stencil_mm0p.ps} \includegraphics[width=8.0cm]{images/pde1d_solve_linadv_spikes_minmod_i200n500dt04.ps}
Figure 18 shows the stencil diagram and an example for the PLM scheme with Minmod slope-limiter. See Sect. 2.4.10.
