2.6.5 PLM scheme with vanLeer slope-limiter

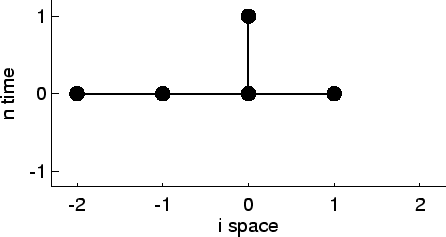

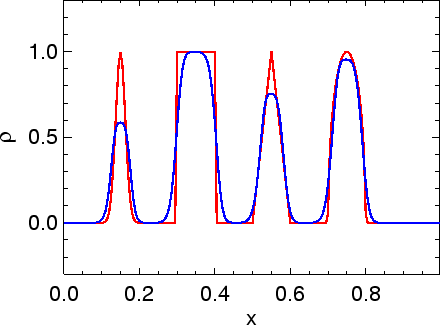

Figure 19: Stencil and example for PLM scheme with vanLeer slope-limiter.
\includegraphics[width=8.0cm]{images/pde1d_stencil_mm0p.ps} \includegraphics[width=8.0cm]{images/pde1d_solve_linadv_spikes_vanleer_i200n500dt04.ps}
Figure 19 shows the stencil diagram and an example for the PLM scheme with vanLeer slope-limiter
