2.6.7 PPM scheme

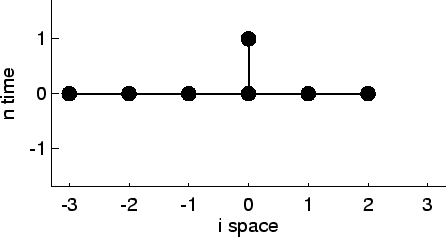

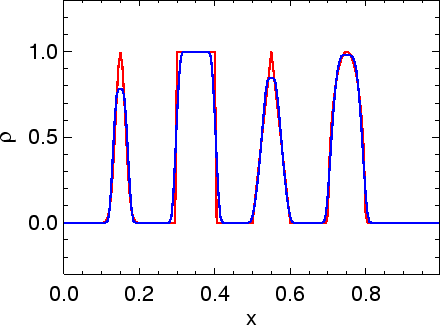

Figure 21:
Stencil and example for PPM scheme.
Figure
21
shows the stencil diagram and an example for the
PPM scheme
with
piecewise parabolic reconstruction
.
![\includegraphics[width=8.0cm]{images/pde1d_stencil_mmm0pp.ps}](img309.png)
![\includegraphics[width=8.0cm]{images/pde1d_solve_linadv_spikes_ppm_i200n500dt04.ps}](img310.png)
