2.6.8 WENO scheme

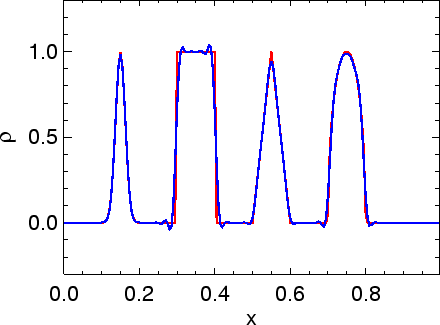

Figure 22: Stencil and example for WENO scheme.
\includegraphics[width=8.0cm]{images/pde1d_stencil_mmmmmmm0pppppp.ps} \includegraphics[width=8.0cm]{images/pde1d_solve_linadv_spikes_weno_i200n500dt04.ps}
Figure 22 shows the stencil diagram and an example for the WENO scheme with weighted essentially non-oscillatory reconstruction (with 6th order polynomials).
